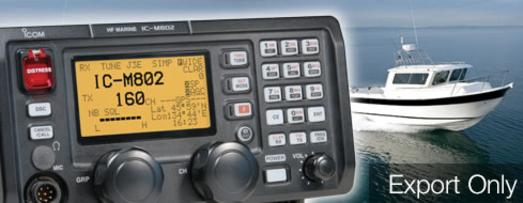

Icom M802 Product Review
Standard 4×8 remote controller
The IC-M802 offers an industry-standard 4-inch tall (10.16 cm) remote controller. When set up with the IC-M502 / IC-M504 VHF radio, Icom offers you a complete communications station.
Large LCD with dot matrix characters
You can easily read the alphanumeric name of any of the 1355 ITU channels at a glance with the large LCD display. Nighttime operation is no problem with 10 levels (plus OFF) adjustable backlit display and keypad.
Easy to use in all conditions
The IC-M802 offers two large dials – bank and channel – for easy channel selection. Up to 16 banks of 20 (max.) each for user channels, and 17 banks for ITU channels are available.
Built-in digital selective calling
For added safety at sea, the IC-M802 offers the latest in one-touch DSC emergency communications technology. (ITU Class E standard.) The emergency button is covered by a red, spring loaded hatch to avoid accidental DSC activation.
Digital signal processor advantage
The speech compressor, utilizing DSP, increases average talk power. Flexible filter settings provide for narrow band signals like e-mail, SITOR, FSK and other operation without an optional filter.
150W (PEP) of powerful output
150 Watts of power offers superior worldwide communications. A one piece, die cast aluminum chassis and a large cooling fan allow continuous transmission at full output power– very important for data communications, like e-mail.
One-touch e-mail access
An SSB first! The IC-M802 can be set to memorize your HF e-mail access frequency, mode and bandwidth settings. At sea e-mail has never been easier.
* Please consult with an HF e-mail provider for details.
Automatic antenna tuner, AT-140
An optional automatic antenna tuner, AT-140, easily connects to the IC-M802. When the tuner cannot tune the antenna, the IC-M802 bypasses the tuner and displays a warning indicator on the LCD.
Other features
Wide band receive coverage (0.5 – 29.9999MHz)
Remote control mic allows you to select channels directly
Accessory RS-232C port allows connection of modem, etc.
GPS input, NMEA 0183 version 3.01
A headphone jack in front of the controller
HF Mounted Marine Radio
The latest ICOM Digital Signal Processor technology with a compact remote head
Specifications
IC-M802
General
Frequency coverage
0.5– 29.9999 MHz
1.6– 2.9999 MHz, 4.0– 4.9999, 6.0– 6.9999 MHz
8.0– 8.9999 MHz, 12.0– 13.9999 MHz, 16.0– 17.9999 MHz
18.0– 19.9999 MHz, 22.0– 22.9999 MHz, 25.0– 27.5000 MHz
Type of emission
J3E (SSB), J2B (AFSK), F1B
(FSK), A1A (CW), H3E (AM*)
*Rx only
Number of channels 1355 (max.)
(160 programmable channels; 249 ITU SSB duplex; 72 ITU
SSB simplex; 662 ITU FSK duplex; 160 e-mail; 21 ITU
4MHz simplex; 31 ITU 8MHz simplex)
Antenna impedance 50Ω (SO-239)
Power supply requirement 13.6V DC ±15%
Max. current drain
(at 13.6V DC)
Tx (Max. power) 30A (typ.)
Rx (Max. audio) 3.0A
Operating temp. range
Guaranteed range
–30°C to +60°C; –22°F to +140°F
–20°C to +55°C; –4°F to +131°F
Frequency stability ±10 Hz (at –20°C to +55°C)
Dimensions
Main unit 240×94×238.4mm; 97⁄16×31116×93⁄8in
Controller 220×110×84.4mm; 821⁄32×411⁄32×35⁄16in
Speaker 110×110×84.4mm; 411⁄32×411⁄32×35⁄16in
Weight
Main unit 4.7kg; 10.36lb
Controller 570g; 1.26lb
Speaker 370g; 0.81lb
Transmitter
Output power 150, 60, 20W PEP (Selectable)
Spurious emissions –62dB
Unwanted sideband 55dB
Carrier suppression 40dB
Microphone impedance 2.4kΩ
Receiver
Sensitivity (at 10dB S/N)
J3E, A1A J2B, F1B H3E DSC (J2B)
0.5 – 1.5999 MHz 6.3µV — 32µV 0.5µV
(at 1% error rate)
1.6 – 1.7999 MHz 0.89µV 0.89µV 6.3µV
1.8 – 3.9999 MHz 0.5µV 0.5µV 3.2µV
4.0 –29.9999 MHz
Spurious response
rejection ratio
Tx/Rx (1.5-29.9999MHz) More than 70dB
DSC (Except 1st IF image) More than 50dB
DSC (1st IF image) More than 60dB
Audio output power 4.0W at 10% distortion with a 4Ω load
Audio output impedance: 4–8Ω
Clarity variable range ±150 Hz
GPS interface NMEA 0183 version 3.01
All stated specifications are subject to change without notice or obligation.
Supplied accessories
Separation cable, OPC-1106 (5m; 16.4ft)
Hand microphone, HM-135
External speaker, SP-24
Mounting bracket kits
Microphone hanger
DC power cables
ACC plugs
Spare fuse
