VHF Marine Radio

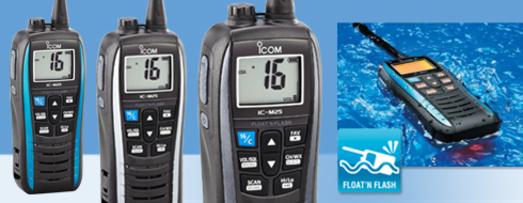

Icom pioneered the floating VHF marine radio and others followed. Setting a new trend with the IC-M24 and now the IC-M25. The IC-M25 has a flashing light feature that activates when the radio hits water, even if the power is off! If you drop this floating radio overboard, it's easier to find than ever, day or night.
Note: The radio in this video is an IC-M24. The IC-M25 features the same Float'n FlashTM technology.

General
Frequency Range
156.050–163.275MHz
Usable channels INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Current drain (at 3.7V DC) 2.3A
Operating temperature range
-20°C to +60°C; -4°F to +140°F
Antenna Impedance 50Ω
Dimensions (W×H×D)
56.6x134.2x30.5mm;
2.23x5.28x1.2in
Weight (approx.) 220g; 7.8oz (With FA-SC59V and MB-133)

Transmitter
Output power
5W (High),1W (Low)

Max. frequency deviation ±5.0kHz
Frequency stability ±10ppm
Spurious emissions -68dBc typical
Adjacent channel power 70dB
Audio harmonic distortion 10% (at 60% dev.)
Residual modulation 40dB

Receiver
Sensitivity (at 12dB SINAD) 0.25µV typical
Squelch sensitivity
0.25µV typ. (at threshold)
Adjacent Channel Selectivity 70dB typical
Spurious response 70dB typical
Intermodulation Rejection 70dB typical
Hum and noise ratio 40dB typical
Audio output power
(at 10% distortion, 8 Ω) Internal SP: 550mW typ. (12Ω load)
External SP: 300mW typ. (4Ω load)

Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Applicable IP Rating and environment test
Ingeress protection standard: waterproof – IPX7 (submersible protection)

  Specifications

Float’n Flash™
The IC-M25 floats and lets you know where it is with the flashing red LED light and LCD/key backlight.

11 Hours long battery Life
The built-in 1500mAh lithium-ion battery allows 11 hours (approx.) of long operation.*
*Typical operation with Tx (Hi: Rx: standby = 5:5:90)

USB charging (Micro-B USB type)
A standard USB connector (Micro-B type) is used for charging the IC-M25. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25*.
*The IC-M25 accepts 5V/1A (Max.) input. Use of third-party products is not guaranteed.

AquaQuake™ draining function
When water is in the speaker grill, Icom’s unique AquaQuake™ emits a buzzing sound and sheds water from the speaker. This function assures clear sharp sound at all times.

Three color choices
Available colors are Metallic Gray, Pearl White and Marine Blue.

Slim body and lightweight
The 7.76-ounce (220g) lightweight and 1.2 inch (30.5mm) slim body is the new benchmark for floating marine transceivers.

Large LCD, simple user interface
The IC-M25’s LCD is 30% larger than the IC-M24’s and clearly shows large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.

550mW audio output
The IC-M25 provides a powerful 550mW audio output and received voice can be heard loud and clear. By holding the VOL/SQL button with ▲ (up) button, the volume is instantly turned up to the maximum level.

Optional speaker microphone, HM-213
The optional waterproof speaker microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist.

Other features
IPX7 waterproof construction (1m depth of water for 30 minutes)
4-step battery life indicator
Weather channel with weather alert (USA version only)
Dual/Tri-watch functions
Instant access to Channel 16 or programmable call channel
Favorite channel function
Monitor function opens noise squelch
Auto scan function
LCD auto backlighting

Supplied accessories
USB charger, BC-217SA
Belt Clip, MB-133
Antenna, FA-SC59V
Hand Strap


  New Style, Three Color Choices and Smart Features!

  Features

IC-M25
